Stainless Steel SWC615-A Weigh Module 20t Industrial Load Cell Sensor

Name: Stainless Steel SWC615A Weigh Module 20t Industrial Load Cell Sensor
Brand: Mettler Toledo
Price: 1 USD

Wholesale Stainless Steel SWC615-A Weigh Module 20t Industrial Load Cell Sensor from china suppliers

Brand Name : Mettler Toledo

Model Number : Weigh Module SWC615-A SS 20t

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Supply Ability : 2000 set per month

Delivery Time : 10-30days

Packaging Details : Caron box

Product : Mettler Toledo Load Cell

Maximum Capacity : 110,000 lb (50,000 kg)

Material : Stainless Steel V2A (AISI 304)

Metrology : OIML C3, NTEP IIIL 10,000

Load Cell : POWERCELL PDX

Accuracy : Standard

Protection Rating : IP68/69k

Environment / Material : Wash-down / Stainless Steel

Hazardous Approval : ATEX， FM

Criticality : Condition monitoring

Contact Now

Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor

Product Overview

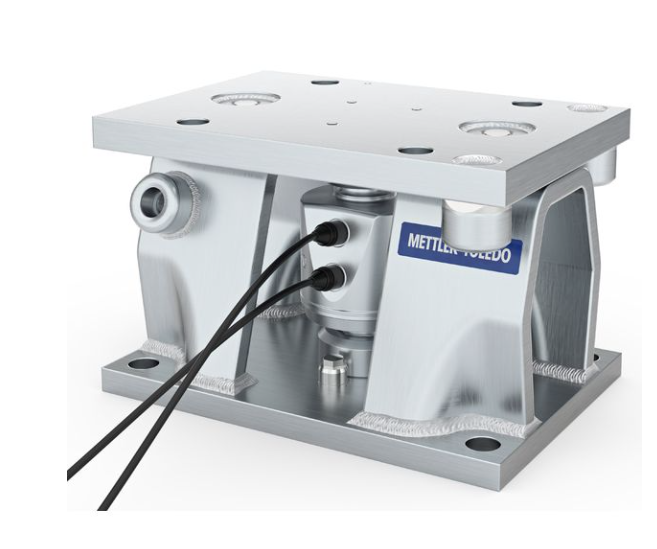

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Design

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high accuracy, fully approved stainless hermetic load cell for all applications.

Enhanced Safety

Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals, and IP68 load cells for maximum reliability.

Condition Monitoring

Monitor individual load cells for overload, temperature, zero drift, and other parameters to prevent system shutdowns or measurement errors.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
